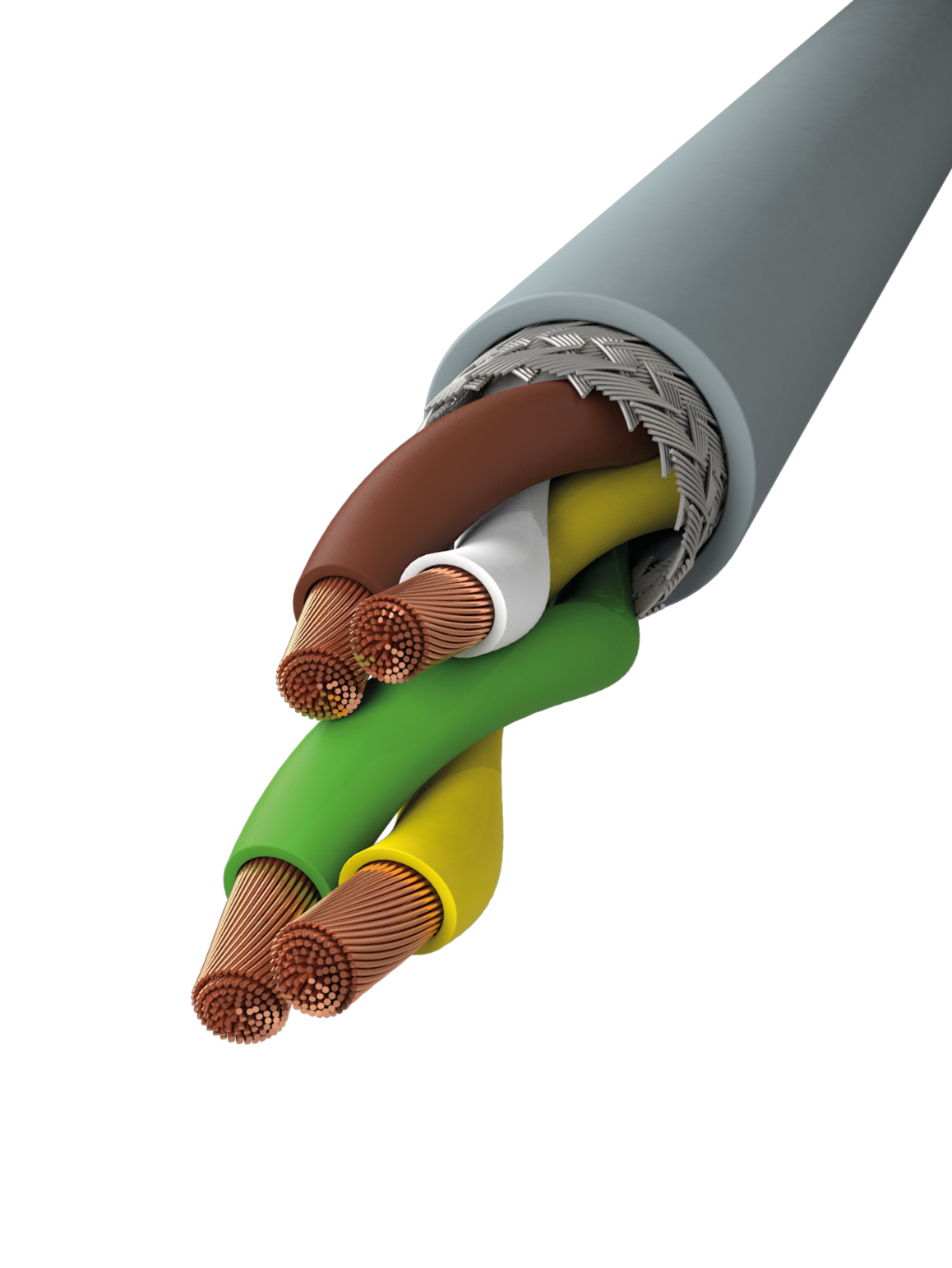

FLEXTRONIC ® LiCP-TP PUR screened

Application

FLEXTRONIC® LiCP-TP PUR is used where a high flexible cable is needed, for instance cable chains or frequent/permanent movement of machine parts. Halogen free.

Construction

Conductor

Cu thread, class 6

Insulation

TPE

Conductor color

Coloured according to DIN 47100

Screen

Tin-coated braided Cu screen, 85% coverage

Outer sheath

PUR, grey RAL 7001

Technical data

Working temperature
Flexible: -40° C to +70° C
Fixed:  -50° C to +70° C
Rated voltage

350 V

Test voltage

1500 V

Bend radius

Provided on request

Approvals

IEC 60228, CE, RoHS
Flexible
Halogen free
Max. working temp. +70° C
Meter marked
Resistance towards oil and chemicals
Suitable for cable chains
UV-resistant
SKU EAN Dimension (mm) Current Value (A) Packaging Diameter (mm)* Weight (kg/km)*
138002501 5704403034000 1x2x0,25 3 D./Cut 4,6 28
138002502 5704403006083 2x2x0,25 3 D./Cut 6,0 61
138002504 5704403006090 4x2x0,25 3 D./Cut 7,8 90
138002506 5704403006106 6x2x0,25 3 D./Cut 9,5 133
138002508 5704403006113 8x2x0,25 3 D./Cut 10,8 156
138002510 5704403006120 10x2x0,25 3 D./Cut 12,5 188
138005002 5704403006144 2x2x0,5 7 D./Cut 9,0 100
138005003 5704403006151 3x2x0,5 7 D./Cut 10,4 131
138005004 5704403006168 4x2x0,5 7 D./Cut 10,8 149
138005005 5704403006175 5x2x0,5 7 D./Cut 12,3 169
138005006 5704403006182 6x2x0,5 7 D./Cut 13,3 196
138007502 5704403006199 2x2x0,75 9 D./Cut 10,4 113
138007504 5704403006205 4x2x0,75 9 D./Cut 12,5 173
* The values can have small deviations
